thermolinePLUS

Our brochures

Description

thermolinePLUS plate heat exchangers are characterized by their outstanding efficiency in high-pressure applications with natural coolants such as CO2 and NH3.

With thermolinePLUS, thermowave offers you an superior high-pressure machine in semi-welded design with an operating pressure of up to 63 bar on the module side.

The variety of our frame designs and connection types are sure to impress in this area. thermolinePLUS apparatuses are made from laser-welded modules and can be used for industrial cooling processes requiring low evaporating temperatures.

Frame types

Previous

Next

PLATES RANGE

FEATURES

Connection variants

Welding neck flange
Stud bolts with lining
Lapped flange with plain collar
Threaded coupling

Energy-saving operation

Efficient heat exchanger for small Δtm
Ideal ratio between heat transfer and pressure drop

Gaskets

NBR
EPDM
Chloroprene
Butyl
FKM (Viton)
FEPM

Simple assembly and servicing

Low weight
Compact design
Low maintenance
Easy to clean

Available accessories

Stainless steel spray protection sheet covers
Counter flanges with nuts & bolts
Stainless steel drip tray
Tightening bolt covers
Hook wrench
Disc spring packs

Advantages

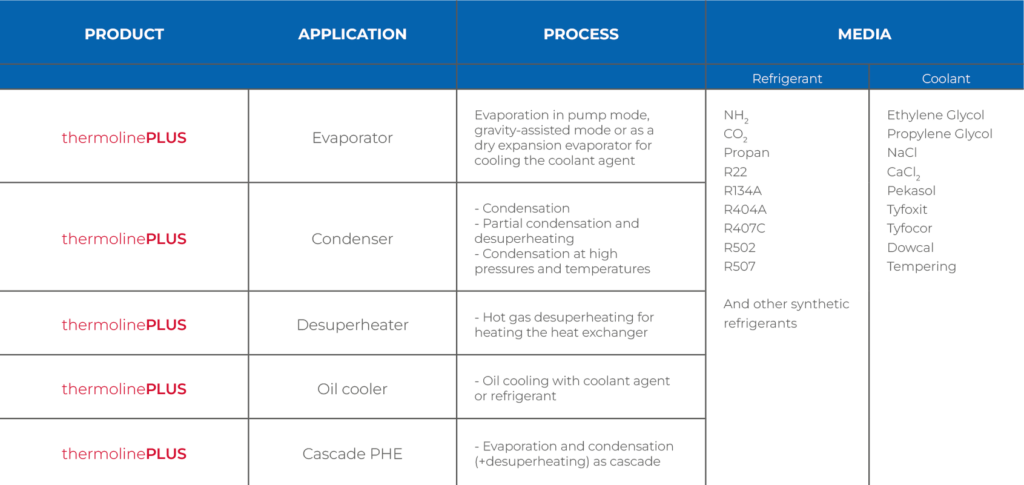

Your applications at a glance
